Trailblazer Heavy-Duty
SNOW REMOVAL REDEFINED

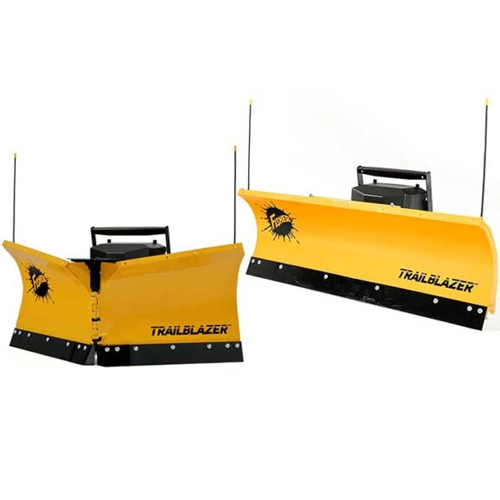

Get more use out of your UTV or sub-compact tractor with the FISHER® TRAILBLAZER™ heavy-duty straight blade plow or v-plow. These plows are engineered to fit a wide variety of compact vehicles and to handle the same demands as our full-sized commercial plows. Constructed from high-strength, low-alloy steel components, both models feature an easy-on/easy-off mounting system and removable receiver brackets for exceptional ground clearance. TRAILBLAZER HD plows also feature Scrape Lock for clean scraping and back dragging.
Features:
• UTV Mounting System: Hooking up the TRAILBLAZER™ v-plow or straight blade is simple. With the receiver brackets installed on your utility vehicle, either drive in or manually push the plow into the receivers. Push up on the headgear to engage the hitch pins in the receiver holes, then slide the handle to lock the hitch pins in place. Finally, connect the electrical plug. Detaching the plow is just as easy. The receivers are removable, to maintain ground clearance.
• Reliable Hydraulics: We build our own hydraulics for unmatched speed and durability. Fast hydraulics allow you to change the blade position quickly and easily for efficient plowing. All critical hydraulic components are fully enclosed for protection from the elements.
• Blade Construction: Featuring a 6' wide powder coated steel flared moldboard, the TRAILBLAZER™ UTV v-plow blades go from a 25¾"" center height to a full 29¼"" at the outer edge. A high-carbon steel cutting edge also comes standard, increasing wear resistance.
• Structural Reinforcement: The high-strength, low-weight alloy steel components are both stronger and lighter than traditional steel, so your utility vehicle can work hard without having to carry the extra weight on your UTV frame like with heavier plows. The TRAILBLAZER™ v-plow blade is reinforced with six vertical ribs, and features the strength of our proven T-frame design.
• Trip Protection: Two heavy-duty coil springs protect your plow and UTV by allowing the whole blade to trip when striking obstacles.
• Double-Acting Cylinders: Double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.
• Center Snow Control: For exceptional snow containment in all positions, the TRAILBLAZER™ UTV v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow.
• Width Adjustment: When fully angled or in V mode, the TRAILBLAZER™ UTV v-plow plowing path is 5' wide, and 4' 7" in scoop. For UTVs with a wider wheel base, a width-adjustment setting is available to make your plowing path wider in these positions. Using the alternate setting, the plowing width is 5' 6" when fully angled or in V, and 5' 1" in scoop.
• Scrape Lock: The FISHER® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.
• Reliable Hydraulics: We build our own hydraulics for unmatched speed and durability. Fast hydraulics allow you to change the blade position quickly and easily for efficient plowing. All critical hydraulic components are fully enclosed for protection from the elements.
• Blade Construction: Featuring a 6' wide powder coated steel flared moldboard, the TRAILBLAZER™ UTV v-plow blades go from a 25¾"" center height to a full 29¼"" at the outer edge. A high-carbon steel cutting edge also comes standard, increasing wear resistance.
• Structural Reinforcement: The high-strength, low-weight alloy steel components are both stronger and lighter than traditional steel, so your utility vehicle can work hard without having to carry the extra weight on your UTV frame like with heavier plows. The TRAILBLAZER™ v-plow blade is reinforced with six vertical ribs, and features the strength of our proven T-frame design.
• Trip Protection: Two heavy-duty coil springs protect your plow and UTV by allowing the whole blade to trip when striking obstacles.
• Double-Acting Cylinders: Double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.
• Center Snow Control: For exceptional snow containment in all positions, the TRAILBLAZER™ UTV v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow.
• Width Adjustment: When fully angled or in V mode, the TRAILBLAZER™ UTV v-plow plowing path is 5' wide, and 4' 7" in scoop. For UTVs with a wider wheel base, a width-adjustment setting is available to make your plowing path wider in these positions. Using the alternate setting, the plowing width is 5' 6" when fully angled or in V, and 5' 1" in scoop.
• Scrape Lock: The FISHER® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.
